4K60 HDMI™ Audio Extractor
HDV-MB01
The HDMI 18Gbps Audio Extractor could extract audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs. Further, both input and output HDMI support video resolution up to 4K2K@50/60Hz (YUV444). It supports 10bits HDR (High Dynamic Range) pass through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192 kHz. HDCP2.2and CEC bypass are supported.
☆ HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
☆ Video resolutions up to 4K2K@50/60Hz (YUV444)
☆ Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
☆ Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH
☆ Supports HDMI High Bit Rats(HBR) audio pass through
☆ Audio sample rates up to 192kHz
☆ 10bits HDR (High Dynamic Range) pass through
☆ Supports CEC bypass

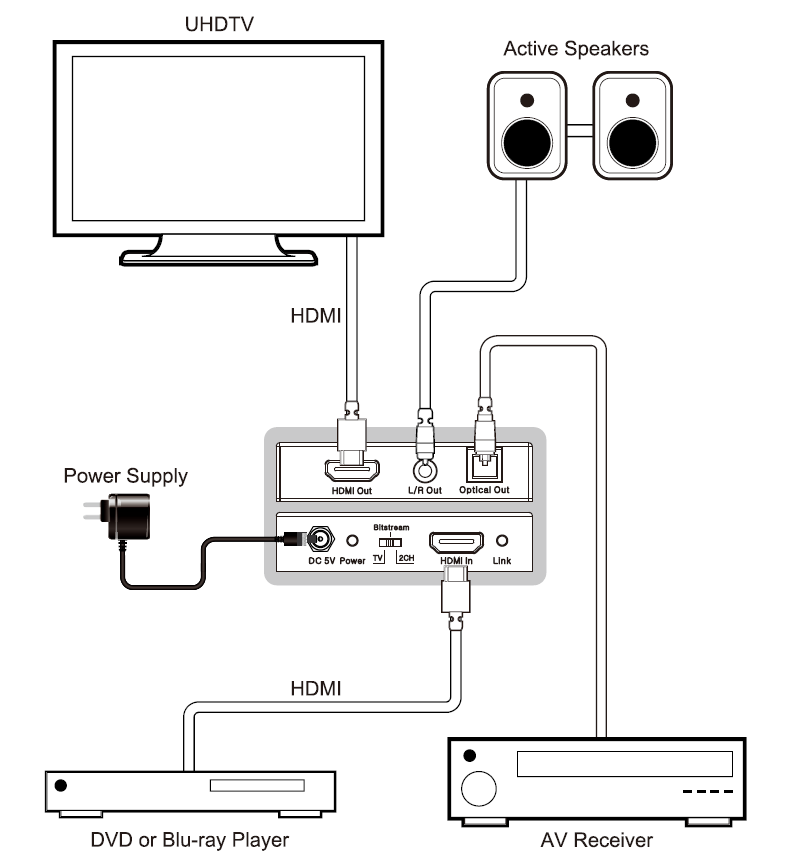

| Specifications | Technical | ||||
| HDCP Compliance | HDCP2.2 and HDCP 1.4 | ||||
| Video Bandwidth | 18Gbps | ||||
| Video Resolution | Up to 4K2K@50/60Hz(YUV4:4:4), 4K2K@30Hz,1080P@120Hz, and 1080P3D@60Hz | ||||
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 | ||||
| Color Depth | 10-bit, 12-bit | ||||
| HDMI Audio Formats (Pass-through) | LPCM 2/5.1/7.1 CH, Dolby Digital, DTS5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X | ||||
| Optical Audio Formats | LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1 CH, DTS 2/5.1 CH | ||||
| L/R Audio Formats | Analog Stereo 2CH | ||||
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) | ||||
| Connections | |||||

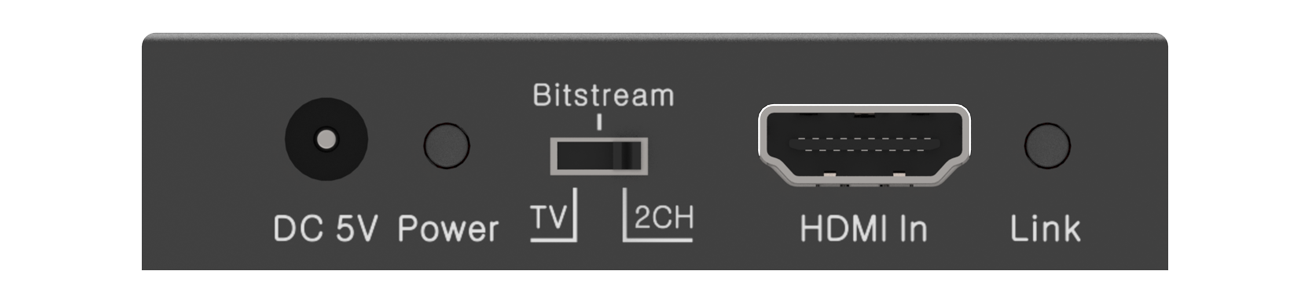

| Input | 1 x HDMI TypeA[19-pin female] | ||||

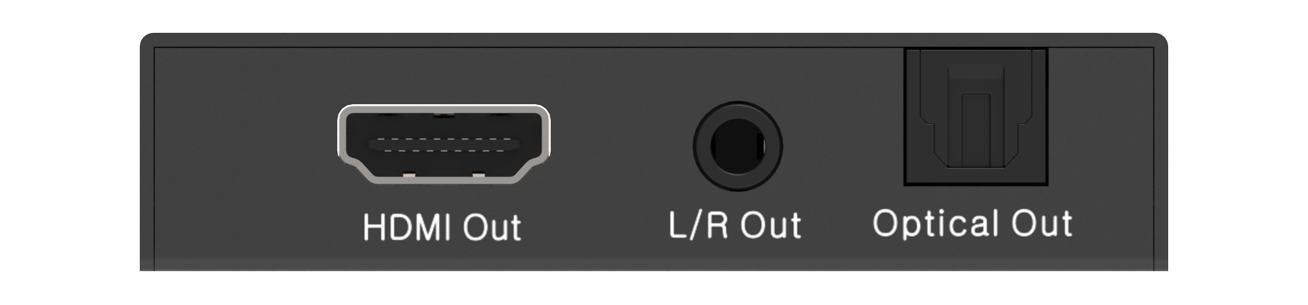

| Output | 1 x HDMI Type A[19-pin female] 1 x L/R Audio Out [3.5mm Stereo Mini-jack] 1 x Optical Out[S/PDIF] | ||||
| Mechanical | |||||
| Housing | Metal Enclosure | ||||
| Silkscreen Color | Black | ||||
| Dimensions | 73.5mm [W] x60.7mm [D] x17mm [H] | ||||
| Weight | 130g | ||||
| Power Supply | Input： AC100- 240V 50/60 Hz Output: DC5V/1A(US/EU standards, CE/FCC/UL certified) | ||||
| Power Consumption | 1W(Max) | ||||
| Operation Temperature | 32°F ~ 104°F / 0°C ~ 40°C | ||||
| Storage temperature | -4°F ~ 140°F / -20°C ~ 60°C | ||||
| Relative Humidity | 20 - 90% RH (no condensation) | ||||
